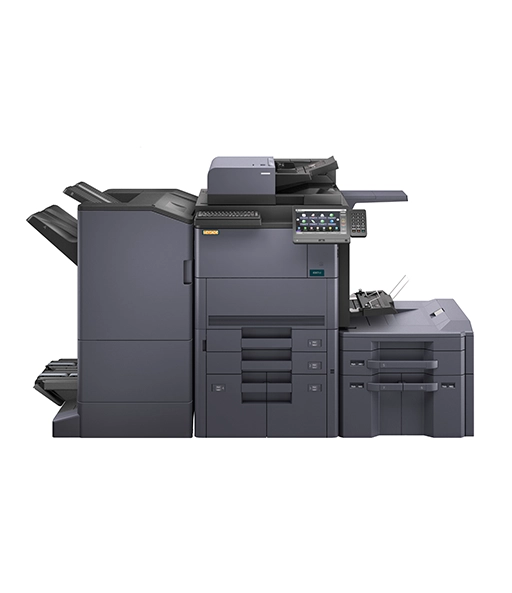

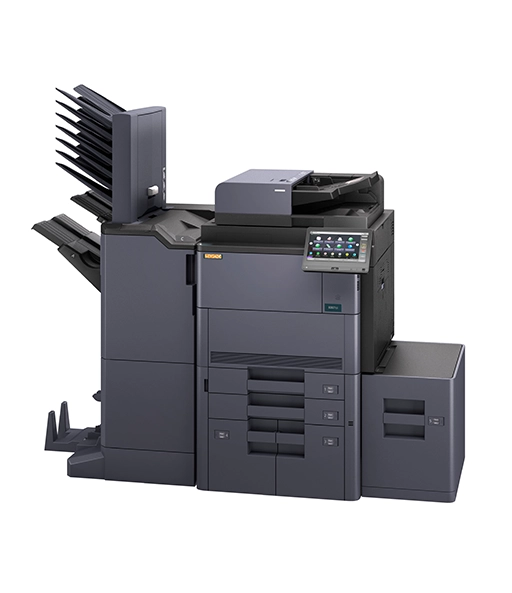

UTAX A3 Color Multi-Function Printer

General

• Type Console Unit
• Function Copy, print, scan, optional: fax
• Print technology Laser colour and b/w
• Original formatmax A3 from platen glass
• Original feederDual scanner with ultrasonic sensor for multi-feed detection (A6R-A3, capacity: 270 sheet A4, paper weight 35-220 g/m² [DIN A5R-DIN A3])
• Print speed (A4, Simplex) B/W83 b/w-pages/min.
• Print speed (A3, Simplex) B/W41 b/w-pages/min.
• Copy speed (A4, Simplex) B/W83 b/w-pages/min.
• Copy speed (A3, Simplex) B/W41 b/w-pages/min.
• Print speed (A4, Simplex) Colour70 colour pages/min
• Print speed (A3, Simplex) Colour35 colour pages/min
• Copy speed (A4, Simplex) Colour70 colour pages/min
• Copy speed (A3, Simplex) Colour35 colour pages/min
• 1st page (printing, colour)6.1 seconds
• 1st page (printing, b/w) 4.9 seconds
• 1st page (copying, colour) 5.9 seconds
• 1st page (copying, b/w) 4.8 seconds
• Warm-up time 44 seconds
• Copy resolution600 x 600 dpi
• Greyscales256
• Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
• Paper feed (1st cassette types)A5R-A3+ [max 305 x 457 mm]
• Paper feed (2nd cassette types)A5R-A3+ [max 305 x 457 mm]
• Paper feed (Multi-Bypass amount)1 x 500 sheet
• Paper feed (Multi-Bypass types)A6R-A3+, Banner [305 x 1,219 mm]
• Paper feed (Large Capacity Cassette amount)2 x 1,500 sheet
• Paper feed (Large Capacity Cassette 1 types)A4
• Paper feed (Large Capacity Cassette 1 types)A4
• Paper feed (print-only)A3+
• Paper weights (Universal cassette min)60 g/m²
• Paper weights (Universal cassette max)256 g/m²
• Paper weights (Multi-Bypass min)60 g/m²
• Paper weights (Multi-Bypass max)300 g/m²
• Paper weights (Duplex min)60 g/m²
• Paper weights (Duplex max)256 g/m²
• Paper output 250 sheet A4 (lower tray), 100 sheet A4 (lower tray), with Copy tray type D
• System memory (RAM)4.5 GB
• System memory (SSD)8 GB
• System memory (HDD)320 GB
• Continuous copying (min)1
• Continuous copying (max)9999
• Zoom (min)25 %
• Zoom (max)400 %
• Zoom (step)1 %
• FunctionsAdjustable colour touch screen (10.1 inch), duplex, 1000 management codes, skip blank pages, trusted platform modul (TPM), secure boot and run time integrity check, etc.

Dimensions / Weight

• Dimensions (height)1234 mm
• Dimensions (width)750 mm
• Dimensions (depth)822 mm
• Weight 182 kg

Environment

• Mains voltage220/240 V
• Utility frequency50/60 Hz
• Power consumption (max)2400 W
• Power consumption (busy)1350 W
• Power consumption (standby)140 W
• Power consumption (sleep)0.7 W
• Power consumption (TEC)1.68 kwh/week
• Safety GS/TÜV, CE

Printing system

• Type Integrated within the system
• Print formatA6R-A3+
• Print resolution (max)1,200 x 1,200 dpi
• ProcessorFreescale QorIQ T1024 (Quad Core) 1.2 GHz
• InterfacesUSB 2.0, 10/100/1000BaseTX, USB host, NFC
• Network protocols TCP/IP, Net BEUI
• Operating systems Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
• Emulations PCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), XPS, PDF, PRESCRIBE Ilc
• Functions USB direct printing, PDF/XPS direct printing, Ipsec, SNMPv3, printing of e-mails, private printing, barcode printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print

Scanning system

• Scan type CCD colour and b/w
• Scan formatmax A3
• Scan speed (Feeder 1, simplex, colour)120 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, simplex, b/w)120 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, duplex, colour)220 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, duplex, b/w)220 DIN-A4-image pages/min. in 300 dpi
• Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
• Scan mode Photo, text, photo/text, optimised for OCR
• File types TIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, XPS, OpenXPS
• Interfaces 10/100/1000BaseTX
• Network protocol TCP/IP
• Operating systems Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
• Functions Scan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

• Type Faxsystem 12
• Compatibility Super G3
• Original formatmax A3
• Modem speed33.6 kbps
• Transmission speed3 seconds or less using JBIG
• Compression methodJBIG, MMR, MR, MH
• Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi
• Fax memory170 MB
• Abbreviated dial2000 numbers
• One touch dial1000 numbers
• Group dial500 numbers
• Operating systems Windows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
• Functions Network fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception

Options

• Finisher DF-7110 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), DF-7130 (capacity: 4,000 sheet A4, stapling max 100 sheet A4), PH-7C hole punch unit for DF-7110/7130, BF-730 brochure module for DF-7110 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4), BF-9100 brochure module for DF-7130 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4), MT- 730 (B) Multi Tray für DF-7110
• Paper feedPF-730 (B) (2 x 500 sheet universal cassettes [A5R-A3+]), PF-740 (B) (2 x 1,500 sheet large capacity cassette [A4]), PF-7130 (500 sheet multi-purpose cassette [A5R-A3+], required if PF-730 (B)/PF-740 (B) is installed), PF-7120 (3,000 sheet large capacity tray [A4], side deck)
• Other optionsInternet fax kit (A), Card authentication kit (B), Keyboard holder 10, Banner guide (A), UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card, IB-35 WLAN card, NK-7120 Numeric Keyboard (10 keys), Copy tray type D, Fiery® Controller (Printing System 16, depends on Printing System Interface Kit 15)
