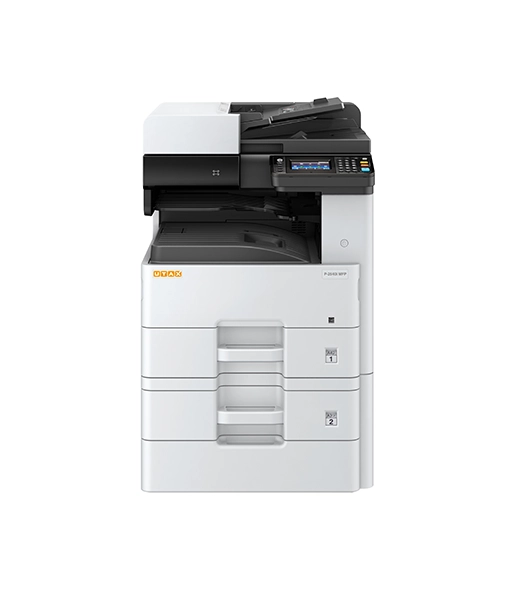

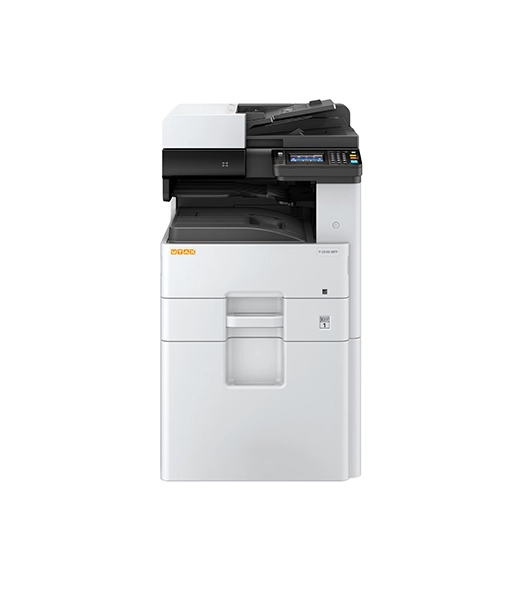

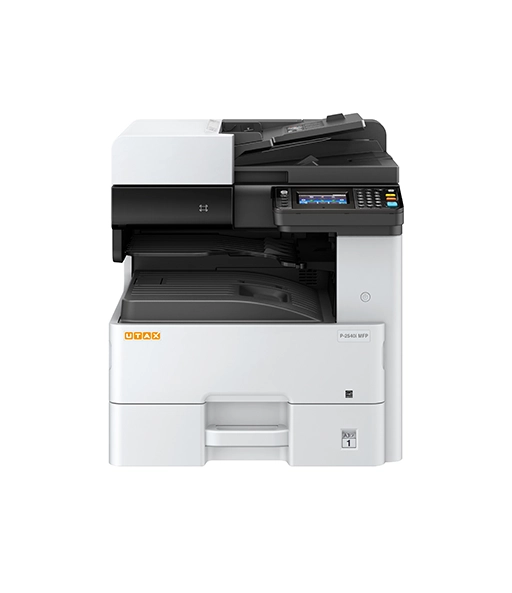

UTAX A3 Mono Multi-Function Printer

General

• TypeDesktop
• Function Copy, print, scan, optional: fax
• Print technology Laser b/w
• Original formatmax A3 from platen glass
• Original feeder 50 sheet A4 (standard), min 140 x 182 mm, max 297 x 432 mm, 45-160 g/m² (simplex), 50-120 g/m² (duplex)
• Print speed (A4, Simplex) B/W25 b/w-pages/min.
• Print speed (A3, Simplex) B/W12 b/w-pages/min.
• Copy speed (A4, Simplex) B/W25 b/w-pages/min.
• Copy speed (A3, Simplex) B/W12 b/w-pages/min.
• 1st page (printing, b/w)5.8 seconds
• 1st page (copying, b/w)5.8 seconds
• Warm-up time19.5 seconds
• Copy resolution 600 x 600 dpi
• Greyscales 256
• Paper feed (Universal cassettes amount)1 x 500 sheet
• Paper feed (1st cassette types)A5R-A3
• Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
• Paper feed (Multi-Bypass types)A6R-A3
• Paper weights (Universal cassette min)60 g/m²
• Paper weights (Universal cassette max)163 g/m²
• Paper weights (Multi-Bypass min)45 g/m²
• Paper weights (Multi-Bypass max)256 g/m²
• Paper weights (Duplex min)60 g/m²
• Paper weights (Duplex max)163 g/m²
• Paper output250 sheet A4
• Job Separator50 sheet A4 (standard)
• System memory (RAM)1 GB
• System memory (RAM max)3 GB
• System memory (Optional)32/128 GB SSD
• Continuous copying (min)1
• Continuous copying (max)999
• Zoom (min)25 %
• Zoom (max)400 %
• Zoom (step)1 %
• Functions Colour touch screen (4.3 inch), duplex, Print from/Scan to USB Stick, job reservation, N-up, favourites, 100 management codes, etc.

Dimensions / Weight

• Dimensions (height)688 mm
• Dimensions (width)590 mm
• Dimensions (depth)590 mm
• Weight 49 kg

Environment

• Mains voltage220/240 V
• Utility frequency50 Hz
• Power consumption (max)1270 W
• Power consumption (busy)410 W
• Power consumption (standby)65 W
• Power consumption (sleep)0.5 W
• Power consumption (TEC)0.29 kwh/week
• Noise level (busy, b/w)44.9 dB(A)
• Noise level (standby) undefined dB(A)
• Safety GS/TÜV, CE

Printing system

• Type Integrated within the system
• Print format A6R-A3
• Print resolution (max)1,200 x 1,200 dpi
• Processor ARM Cortex-A9 Dual core 1.2 GHz
• Interfaces USB 2.0, 10/100/1000 Base TX, USB host (2), NFC, Wi-Fi
• Network protocolsTCP/IP, Net BEUI
• Operating systems Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Novell NetWare, Linux, Mac ex OS 10.5
• Emulations PCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, PDF 1.7, XPS
• Functions USB direct printing, printing of e-mails, PDF/XPS direct printing, private printing, barcode printing, Mobile Print (Android/iOS), Apple AirPrint, Google Cloud Print, Wi-Fi

Scanning system

• Scan type CIS colour and b/w
• Scan formatmax A3
• Scan speed (Feeder 1, simplex, colour)50 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, simplex, b/w)50 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, duplex, colour)16 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, duplex, b/w)16 DIN-A4-image pages/min. in 300 dpi
• Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
• Scan modePhoto, text, photo/text, optimised for OCR
• File typesTIFF, PDF, XPS, OpenXPS, high compression PDF, JPEG
• Interfaces10/100/1000BaseTX, USB 2.0
• Network protocolTCP/IP
• Operating systems Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016
• FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

• Typeoptional Fax System 13
• Compatibility Super G3
• Original formatmax A3
• Modem speed33.6 kbps
• Transmission speed3 seconds or less using JBIG
• Compression method JBIG, MMR, MR, MH
• Fax resolution Standard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)
• Fax memory16 MB
• Fax memory (image)12 MB
• Abbreviated dial200 numbers
• One touch dial100 numbers
• Group dial50 numbers
• Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016
• Functions Network fax driver, automatic redialling, delayed transmission

Options

• Paper feedPF-470 (1 x 500 sheet universal cassettes (A5R-A3)), PF-471 (2 x 500 sheet universal cassettes (A5R-A3))
• Other options Data security kit (E), Scan extension kit (A), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 62
