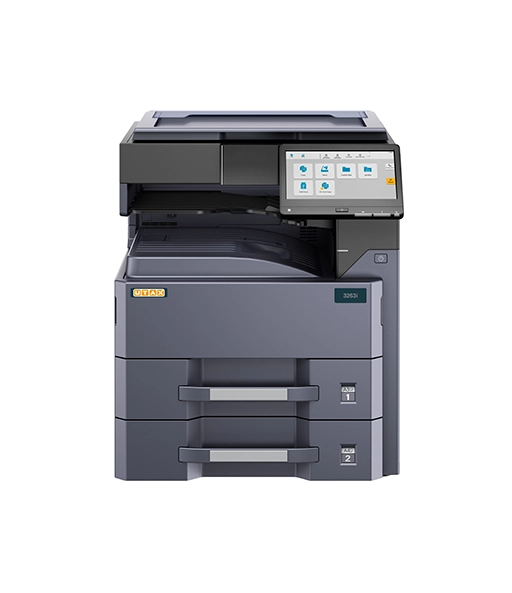

UTAX A3 Mono Multi-Function Printer

General

• Type Desktop
• Function optional: fax, scan, print, Copy
• Print technologyLaser b/w
• Original formatmax A3 from platen glass
• Print speed (A4, Simplex) B/W32 b/w-pages/min.
• Copy speed (A4, Simplex) B/W32 b/w-pages/min.
• Print speed (A4, Duplex) B/W17 b/w-pages/min.
• Copy speed (A4, Duplex) B/W17 b/w-pages/min.
• 1st page (printing, b/w)4.9 seconds
• 1st page (copying, b/w)4.3 seconds
• Warm-up time18 seconds
• Copy resolution600 x 600 dpi
• Greyscales256
• Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
• Paper feed (1st cassette types)A5R-A3
• Paper feed (2nd cassette types)A5R-A3
• Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
• Paper feed (Multi-Bypass types)A6R-A3
• Paper weights (Universal cassette min)60 g/m²
• Paper weights (Universal cassette max)163 g/m²
• Paper weights (Multi-Bypass min)45 g/m²
• Paper weights (Multi-Bypass max)256 g/m²
• Paper weights (Duplex min)60 g/m²
• Paper weights (Duplex max)163 g/m²
• Job Separator50 sheet A4 (standard)
• System memory (RAM)4 GB
• System memory (RAM max)4 GB
• System memory (SSD)32 GB
• Continuous copying (min)1
• Continuous copying (max)9999
• Zoom (min)25 %
• Zoom (max)400 %
• Zoom (step)1 %
• FunctionsAdjustable colour touch screen (10.1 inch), 1000 management codes, skip blank pages, encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module), secure boot and run time integrity check, trusted platform modul (TPM), duplex, etc.

Dimensions / Weight

• Dimensions (height)683 mm
• Dimensions (width)594 mm
• Dimensions (depth)696 mm
• Weight59 kg

Environment

• Mains voltage220/240 V
• Utility frequency50/60 Hz
• Power consumption (max)1620 W
• Power consumption (busy)510 W
• Power consumption (standby)100 W
• Power consumption (sleep)0.5 W
• Power consumption (TEC)0.4 kwh/week
• Noise level (busy, b/w)48 dB(A)
• Noise level (standby)31.4 dB(A)
• SafetyCE, GS/TÜV

Printing system

• Type Integrated within the system
• Print format A6R-A3
• Print resolution (min)600 x 600 dpi
• Print resolution (max)1,200 x 1,200 dpi
• Interfaces10/100/1000BaseTX, USB host, USB 3.0, SD-Card Slot
• Network protocolsTCP/IP, Net BEUI
• Operating systemsWindows 8.1, Windows 10, Server 2012 R2, Server 2016, Server 2019, Linux, Mac ex OS 10.9
• EmulationsKPDL 3 (PostScript 3 compatible), XPS, PRESCRIBE Ile, PCL6 (PCL 5c, XL), PDF
• FunctionsUSB direct printing, Apple AirPrint, NFC, private printing, barcode printing, SNMPv3, PDF direct printing, Wi-Fi, etc.

Scanning system

• Scan typeCCD colour and b/w
• Scan formatmax A3
• Scan resolution300 dpi, 200 dpi, 400 dpi, 600 dpi
• Scan modePhoto, text, photo/text, optimised for OCR
• File typesTIFF, JPEG, XPS, PDF/A, PDF/A-1a, PDF/A-1b, PDF/A-2a, PDF/A-2b, high compression and encrypted PDF, OpenXPS
• Interfaces10/100/1000BaseTX
• Network protocolTCP/IP
• Operating systems Windows 10, Server 2012 R2, Server 2016, Windows 8.1, Server 2019
• Functionsscan to FTP, Scan to SMB, SMTP authentication, WIA scan, TWAIN scan, scan to USB, scan to e-mail

Fax system

• Type Faxsystem 12
• Compatibility Super G3
• Original formatmax A3
• Modem speed33.6 kbps
• Transmission speed3 seconds or less using JBIG
• Compression methodJBIG, MMR, MH, MR
• Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi
• Fax memory170 MB
• Abbreviated dial2000 numbers
• One touch dial1000 numbers
• Group dial 500 numbers
• Operating systemsWindows 8.1, Windows 10, Server 2012 R2, Server 2016, Server 2019
• Functionsdelayed transmission, max 2 fax kits for parallel transmission and reception, automatic redialling, Network fax driver

Options

• Original feeder DP-7140 document processor with automatic reverse function (A5R-A3, capacity: 50 sheet A4, paper weight 45-160 g/m²), DP-7150 document processor with automatic reverse function (A6R-A3, capacity: 140 sheet A4, paper weight 35- 160 g/m²), DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²), DP-7160 document processor with simultaneous duplex scanning (A6R-A4, capacity: 320 sheet A4, paper weight 35-220 g/m²)
• Original platen coverPlaten cover type E (if document processor is not installed)

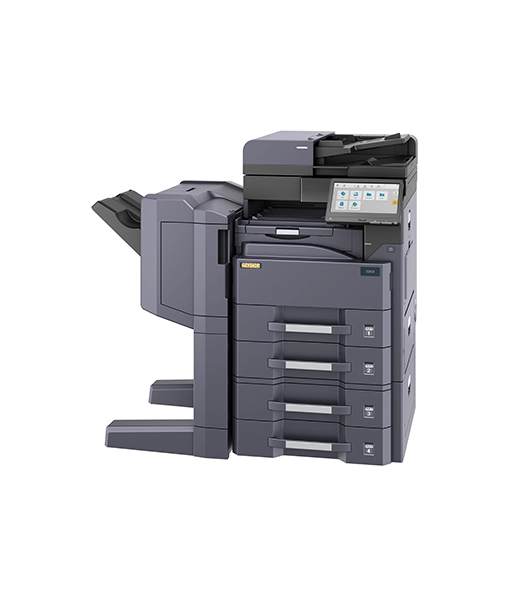

• Finisher DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),, DF-791 (capacity: 3,000 sheet A4, stapling max 65 sheet A4), PH-7C hole punch unit for DF-7120/DF-791
• Paper feedPF-810 (2 x 1,500 sheet large capacity cassette [A4]), PF-791 (2 x 500 sheet universal cassettes [A5R-A3])
• Other optionsScan extension kit (A), Card authentication kit (B), HD-15 (320 GB HDD), HD-16 (1 TB HDD), NK-7120 Numeric Keyboard (10 keys), Keyboard holder 10, Internet fax kit (A), IB-50 Gigabit Ethernet card, IB-51 WLAN card (IEEE802.11/b/g/n), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), cabinet no. 70, Banner guide (A), DT-730(B) Document tray, UG-34 Emulation option kit, UG-33 ThinPrint® kit
