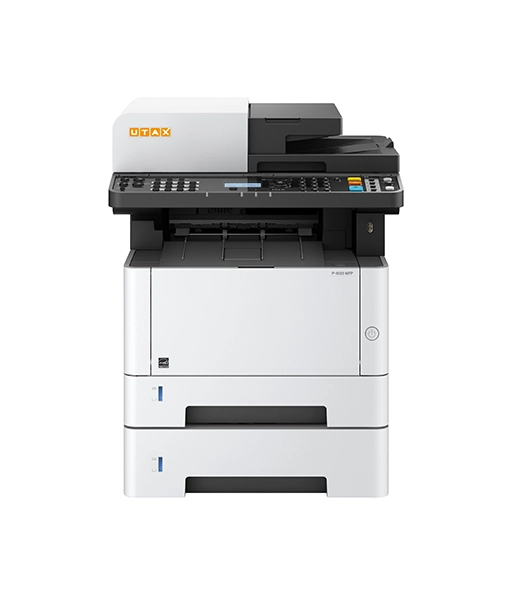

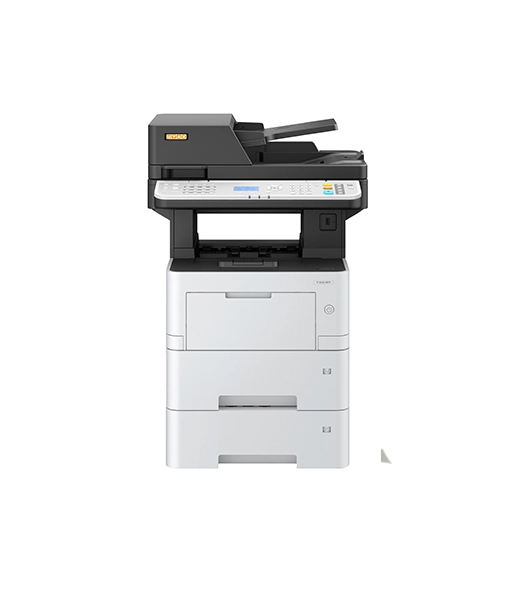

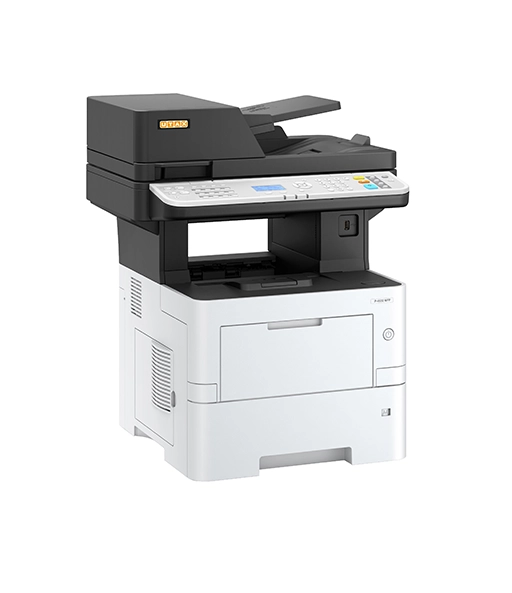

UTAX A4 Mono Multi-Function Printer

General

• Type Desktop
• Function Copy, print, scan
• Print technology Laser b/w
• Original formatmax A4 from platen glass
• Original feeder 75 sheet document processor with automatic reverse function, A6R-A4, 50-120 g/m² (standard)
• Print speed (A4, Simplex) B/W45 b/w-pages/min.
• Copy speed (A4, Simplex) B/W45 b/w-pages/min.
• Print speed (A4, Duplex) B/W22.5 b/w-pages/min.
• Copy speed (A4, Duplex) B/W22.5 b/w-pages/min.
• 1st page (printing, b/w)5.3 seconds
• 1st page (copying, b/w)6 seconds
• Warm-up time16 seconds
• Copy resolution600 x 600 dpi
• Greyscales256
• Paper feed (Universal cassettes amount)1 x 500 sheet
• Paper feed (1st cassette types)A5R-A4
• Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
• Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
• Paper weights (Universal cassette min)60 g/m²
• Paper weights (Universal cassette max)120 g/m²
• Paper weights (Multi-Bypass min)60 g/m²
• Paper weights (Multi-Bypass max)220 g/m²
• Paper weights (Duplex min)60 g/m²
• Paper weights (Duplex max)120 g/m²
• Paper output250 sheet A4 (face-down)
• System memory (RAM)1 GB
• System memory (RAM max)3 GB
• Continuous copying (min)1
• Continuous copying (max)999
• Zoom (min)25 %
• Zoom (max)400 %
• Zoom (step)1 %
• Functions duplex, job reservation, ID card copy, Scan once – Copy Many, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes, secure boot and run time integrity check

Dimensions / Weight

• Dimensions (height)575 mm
• Dimensions (width)475 mm
• Dimensions (depth)476 mm
• Weight 22.3 kg

Environment

• Mains voltage220/240 V
• Utility frequency50/60 Hz
• Power consumption (max)1270 W
• Power consumption (busy)585 W
• Power consumption (standby)55 W
• Power consumption (sleep)0.5 W
• Power consumption (TEC)0.61 kwh/week
• Noise level (busy, b/w)52.8 dB(A)
• Noise level (standby)22.6 dB(A)
• Safety CE, GS/TÜV

Printing system

• Type Integrated within the system
• Print format A6R-A4
• Print resolution (max)1,200 x 1,200 dpi
• Processor ARM Cortex-A53 Dual Core, 1,4 GHz
• InterfacesUSB 2.0, 10/100/1000BaseTX, USB host
• Network protocolsTCP/IP, Net BEUI
• Operating systems Windows 8, Windows 8.1, Windows 10, Server 2012, Server 2012 R2, Server 2016, Server 2019, Linux, Server 2022, Chrome OS, Mac ab OS 10.14
• EmulationsPCL6 (PCL 5e/c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS, PDF 1.7
• FunctionsUSB direct printing, printing of e-mails, PDF direct printing, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Wi-Fi, Microsoft Universal Print

Scanning system

• Scan type CCD colour and b/w
• Scan format max A4
• Scan speed (Feeder 1, simplex, colour)40 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, simplex, b/w)60 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, duplex, colour)17 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, duplex, b/w)26 DIN-A4-image pages/min. in 300 dpi
• Scan resolution 200 dpi, 300 dpi, 400 dpi, 600 dpi
• Scan mode Photo, text, photo/text, optimised for OCR
• File types TIFF, JPEG, PDF, PDF/A-1a, PDF/A, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, OpenXPS, MS Office/text-searchable PDF
• Interfaces10/100/1000BaseTX, USB 2.0
• Network protocolTCP/IP
• Operating systems Windows 8, Windows 8.1, Windows 10, Server 2012, Server 2016, Server 2012 R2
• FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Options

• Paper feedmax 4 x PF-3110 (500 sheet universal cassettes (A5R-A4, 60-120 g/m²])
• Other optionsCard authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, cabinet no. 79 (high), cabinet no. 80 (low), HD-18 SSD (256 GB), IB-38 W-LAN card**** (IEEE802.11 b/g/n Wi-Fi direct), HD-17 SSD (64 GB), HD-19 SSD (512 GB), IB-51 WLAN card, IB-37 WLAN card (IEEE802.11a/b/g/n/ac), caster kit CA-3100, UG-50 Trusted Platform Modul
