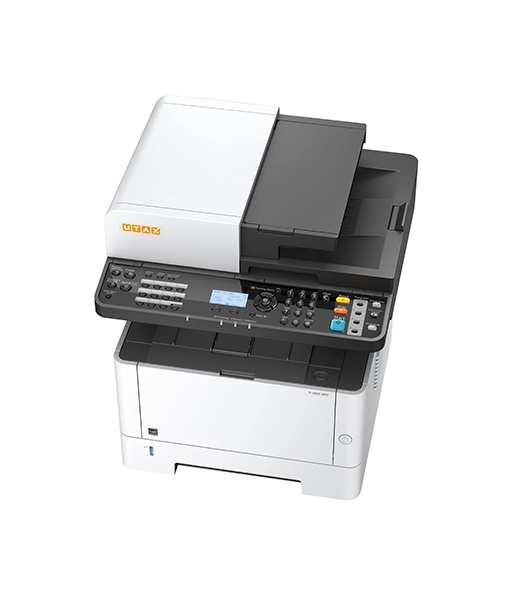

UTAX A4 Mono Multi-Function Printer

General

• Type Desktop
• Function Copy, print, scan
• Print technology Laser b/w
• Original formatmax A4 from platen glass
• Original feeder50 sheet A4 (standard, A6R-A4), 50-160 g/m² (with simultaneous duplex scanning)
• Print speed (A4, Simplex) B/W40 b/w-pages/min.
• Copy speed (A4, Simplex) B/W40 b/w-pages/min.
• Print speed (A4, Duplex) B/W20 b/w-pages/min.
• Copy speed (A4, Duplex) B/W20 b/w-pages/min.
• 1st page (printing, b/w) 6.4 seconds
• 1st page (copying, b/w) 6.4 seconds
• Warm-up time17 seconds
• Copy resolution 600 x 600 dpi
• Greyscales256
• Paper feed (Universal cassettes amount)1 x 250 sheet
• Paper feed (1st cassette types)A6R-A4
• Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
• Paper feed (Multi-Bypass types) A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
• Paper weights (Universal cassette min)60 g/m²
• Paper weights (Universal cassette max)163 g/m²
• Paper weights (Multi-Bypass min)60 g/m²
• Paper weights (Multi-Bypass max)220 g/m²
• Paper weights (Duplex min)60 g/m²
• Paper weights (Duplex max)163 g/m²
• Paper output150 sheet A4
• System memory (RAM)0.5 GB
• System memory (RAM max)1.5 GB
• Continuous copying (min)1
• Continuous copying (max)999
• Zoom (min)25 %
• Zoom (max)400 %
• Zoom (step)1 %
• Functionsduplex, job reservation, job programs, ID card copy, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes

Dimensions / Weight

• Dimensions (height)437 mm
• Dimensions (width)417 mm
• Dimensions (depth)412 mm
• Weight19 kg

Environment

• Mains voltage 220/240 V
• Utility frequency 50/60 Hz
• Power consumption (max)990 W
• Power consumption (busy)661 W
• Power consumption (standby)21 W
• Power consumption (sleep)1 W
• Power consumption (TEC)0.54 kwh/week
• Noise level (busy, b/w)48.3 dB(A)
• Noise level (standby)undefined dB(A)
• SafetyGS/TÜV, CE

Printing system

• Type Integrated within the system
• Print formatA6R-A4
• Print resolution (min)600 x 600 dpi
• Print resolution (max)1,200 x 1,200 dpi
• Processor Cortex-A9, 800 MHz
• Interfaces USB 2.0, 10/100/1000BaseTX, USB host, SD-Card Slot
• Network protocolsTCP/IP, Net BEUI
• Operating systems Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Linux, Mac ex OS 10.5
• Emulations PCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, PDF 1.7, XPS, Open XPS
• FunctionsUSB direct printing, printing of e-mails, PDF direct printing, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print

Scanning system

• Scan typeCIS colour and b/w
• Scan formatmax A4
• Scan speed (Feeder 1, simplex, colour)23 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, simplex, b/w)40 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, duplex, colour)16 DIN-A4-image pages/min. in 300 dpi
• Scan speed (Feeder 1, duplex, b/w)32 DIN-A4-image pages/min. in 300 dpi
• Scan resolution 200 dpi, 300 dpi, 400 dpi, 600 dpi
• Scan modePhoto, text, photo/text, optimised for OCR
• File typesTIFF, JPEG, PDF, high compression PDF, PDF/A-1a, XPS
• Interfaces 10/100/1000 BaseTX, USB 2.0
• Network protocol TCP/IP
• Operating systems Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008 R2, Server 2012 R2
• Functions Scan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Options

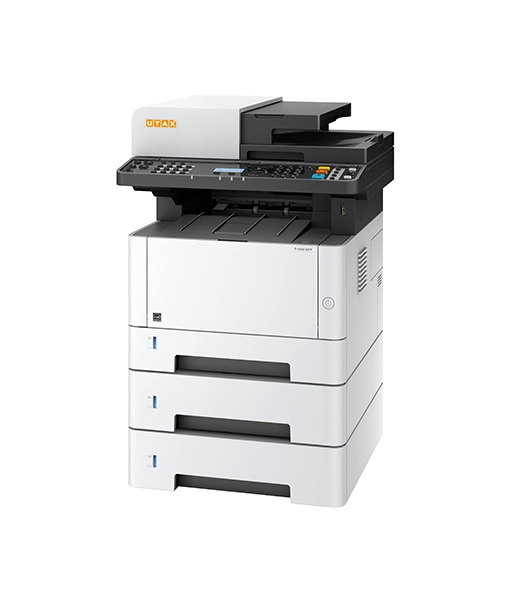

• Paper feedmax 2 x PF-1100 (250 sheet universal cassettes [A6R-A4, 60-163 g/m²])
• Other options Card authentication kit (B), UG-33 ThinPrint® kit, cabinet no. 78
